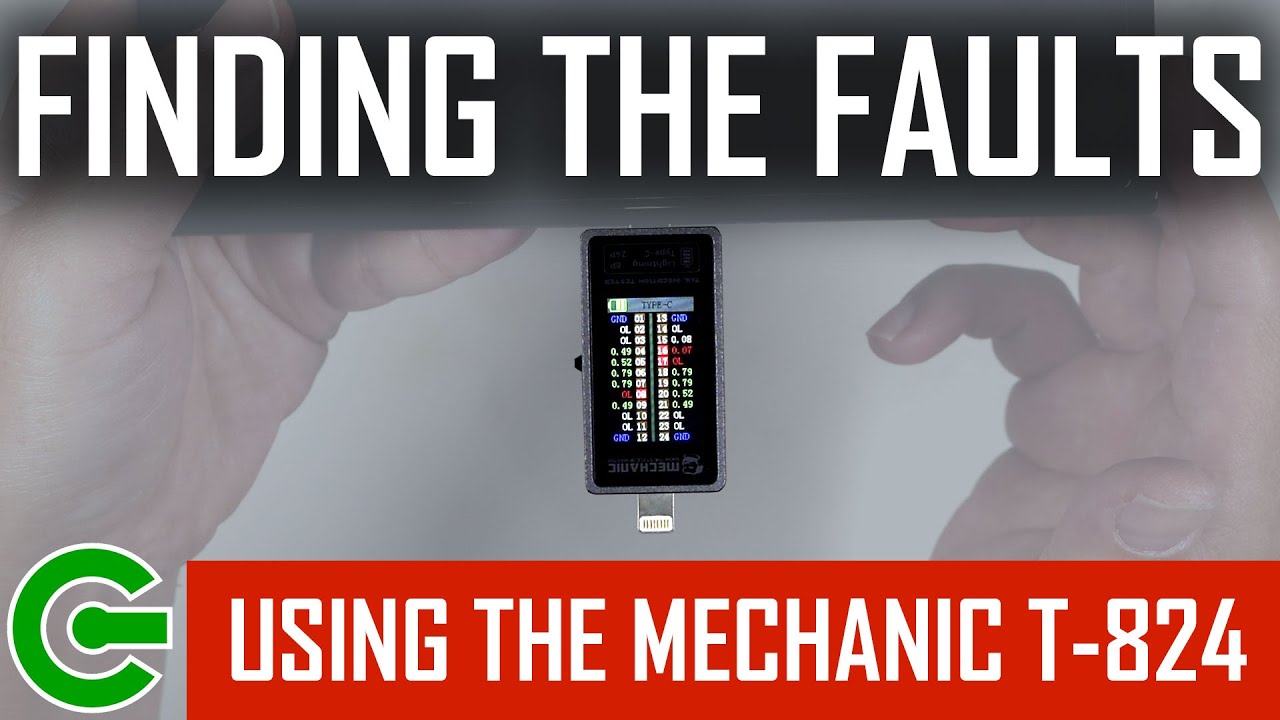

REPAIRING THE NINTENDO SWITCH OLED – NO CHARGING – NO HDMI – USING THE MECHANIC T-824

This video will show you several tools to inspect your Nintendo Switch
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
TIME STAMP

00:00 INTRO
00:09 INTRO
00:20 DISCLAIMER
00:29 CONSOLE INSPECTION
03:34 USING THE USB TYPE-C BREAKOUT BOARD
05:36 USING THE XZZ SCHEMATICS
08:14 REMOVING THE USB PORT
10:19 SOLDERING A NEW USB PORT
12:32 REPLACING THE NOISE FILTER
13:44 TESTING THE USB PORT CONNECTIVITY (AGAIN)
14:33 SOLDERING THE USB PORT ANCHORS
15:30 TESTING THE CHARGING FUNCTION
16:11 FINALLY

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
MUSIC
https://elements.envato.com/lounging-hip-hop-ZDTQQUT
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
TOOLS USED IN THIS VIDEO

– Mechanic T-824
– USB Type C Breakout Board
– Stirri V3 Flux
– Hakko T12 JL02 and T12 D24
– USB Tester
– XW5 solder wire

▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
